Why do high-end athletic jerseys get ruined by blurry ghost shadows, even when your printer nozzles, ink density, and heat press temperatures are completely flawless?
If you run a digital textile print shop, you know the feeling. The print file is razor-sharp. The ink dries cleanly. But the moment you lift the heat press or run the fabric through the rotary calender, double edges appear around numbers, logos, and fine lines.
The culprit is almost never your printer or your ink. The real issue is fabric movement.
Elastic textiles like spandex, Lycra, and stretch polyester shrink and shift under high heat. In this guide, we break down the engineering differences between regular transfer paper and HM51 sticky sublimation paper, explain how thermal tack stops ghosting, and share practical shop-floor tips to keep your sportswear transfers crisp every time.
What causes ghosting: Stretchy synthetic fabrics shrink when heated and snap back when the press opens. Any tiny shift while the dye is still gas creates a blurry double image.
How tacky paper works: HM51 sticky sublimation paper (80–100gsm) features a heat-activated polymer coating. It stays dry during printing but bonds firmly to fabric under heat, locking the two surfaces together.
Zero glue residue: The thermal adhesive activates only at pressing temperatures (180°C–210°C / 356°F–410°F) and releases cleanly upon cooling, leaving fabric soft and breathable.
When to use each paper: Use regular lightweight rolls (29–62gsm) for rigid banners and non-stretch woven polyester; reserve 80–100gsm tacky paper for high-stretch sportswear, swimwear, and cycling kits.
Save labor and tape: Tacky paper eliminates the need for manual heat-resistant taping on cut-piece garment presses, speeding up production by up to 25%.
Sublimation is a gas-phase chemical reaction, which makes it vulnerable to physical air currents and micro-movement.
During heat pressing at 190°C–205°C (374°F–401°F), solid dye particles on the transfer paper turn directly into gas. At that exact moment, high heat causes the synthetic polymer fibers in the fabric to open up and absorb the dye gas.
On rigid items like ceramic mugs or non-stretch woven flags, the substrate stays completely still. But performance sportswear is made of knit fibers blended with 8% to 25% elastane (Lycra/Spandex). Under intense heat, these elastic fibers suffer thermal shrinkage.
Here is where the problem happens:
The Vacuum Lift Effect: When a flatbed pneumatic heat press opens, the vertical suction creates a slight vacuum that lifts standard paper off the fabric before the dye gas has settled.
Calender Tension Variation: On roll-to-roll oil calenders, knit fabric and paper feed at slightly different tension rates.

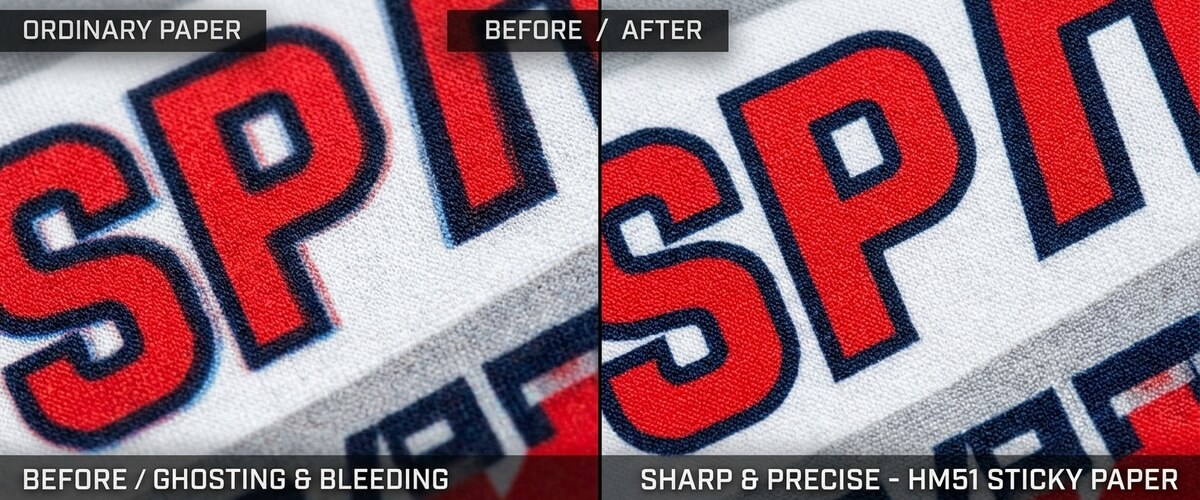

The Micro-Shift: If standard paper moves even 0.2 mm to 0.5 mm while hot dye gas is floating, a faint "shadow" or secondary outline transfers right next to the original design.
This flaw is known as ghosting. Because performance athletic fabrics are costly, a 5% ghosting defect rate can erase a factory's profit margin on a sportswear contract.
|
| Factor | Non-Stretch Woven Fabric | Elastic Sportswear (Lycra / Spandex) | | Thermal Shrinkage | Minimal (<0.5%) | Significant (2% to 6% during transfer) | | Recovery Snap-Back | Low elasticity | High recoil upon pressure release | | Ghosting Vulnerability | Very low | Very high with standard paper | | Recommended Transfer Media | Regular sublimation paper rolls (29–70gsm) | HM51 sticky sublimation paper (80–100gsm) |
Thermal adhesion locks the paper directly to the textile fibers, turning two moving parts into one solid unit.
Many print shop operators ask: “Will sticky paper gum up my printheads or leave sticky residue on the jersey?”
The answer is no. Professional sticky sublimation paper is engineered with two distinct functional layers on a 100% virgin wood pulp base:
Layer 1: The Microporous Dye Holdout Coating: This layer holds the sublimation ink on the surface for fast drying and high dye transfer (≥95%).
Layer 2: The Heat-Activated Thermoplastic Tackifier: At room temperature (20°C–25°C), this coating feels smooth, dry, and non-sticky. It feeds cleanly through your Epson, Kyocera, or Atexco print carriage without causing jams.
When the sandwich of paper and fabric enters the heat press at 180°C or above, the tackifier instantly softens and creates a temporary micro-bond with the fabric fibers.
Even if the fabric expands or contracts, the paper moves in perfect sync with the textile. When the heat press opens, the paper stays anchored to the fabric. Once the piece cools for 2 to 3 seconds, the operator peels the paper off easily. The adhesive releases 100% cleanly, leaving no sticky residue, no odor, and no yellowing.
"By bonding the transfer sheet to the fabric during the critical gas-release phase, tacky paper eliminates 99% of ghosting defects on elastic apparel."
To help your production team make the right choice, here is a direct comparison between regular transfer paper and Heming Paper's HM51 Tacky Series:
| Feature / Metric | Regular Sublimation Paper | HM51 Sticky Sublimation Paper | | Surface Tack at Room Temp | Non-sticky (matte coated) | Non-sticky (dry to the touch) | | Tack Activation Point | No adhesion | Heat-activated at 180°C–210°C (356°F–410°F) | | Grammage Range (GSM) | 29 / 33 / 42 / 52 / 70 / 100 gsm | 80 gsm to 100 gsm | | Target Substrates | Non-stretch polyester, rigid blanks, banners | Lycra, spandex, cycling wear, swimwear, activewear | | Transfer Yield Rate | ≥95% color release | ≥95% color release (high optical density) | | Ink Saturation Capacity | Medium to high (grade dependent) | High ink load (>250% multi-pass dark colors) | | Need for Heat Tape | Required on cut pieces to prevent shift | Eliminated (adhesive holds position) | | Roll Formats Available | 0.21m–3.2m widths (100m–15,200m rolls) | 0.21m–3.2m widths (100m–1,000m+ rolls) |
While sublimation transfer paper comes in many weights, choosing sticky paper is mandatory in four specific production scenarios:
Cycling jerseys, wrestling singlets, yoga leggings, and compression rashguards contain high percentages of elastane. These fabrics contract the instant heat is applied. Using non-tacky paper on these garments leads to unreadable text, blurry numbers, and misaligned sponsor logos.
In cut-piece production, garment panels are laid out individually on large flatbed presses. Workers often spend valuable minutes taping paper edges down with thermal tape. Using HM51 tacky paper allows operators to simply position the print and close the press. The heat does the bonding automatically, cutting labor time significantly.
Dark backgrounds require heavy ink limits. Standard lightweight papers can wrinkle or lift at the edges under heavy ink saturation. The 80–100gsm weight of HM51 provides the physical stiffness needed to absorb heavy ink loads while staying flat.

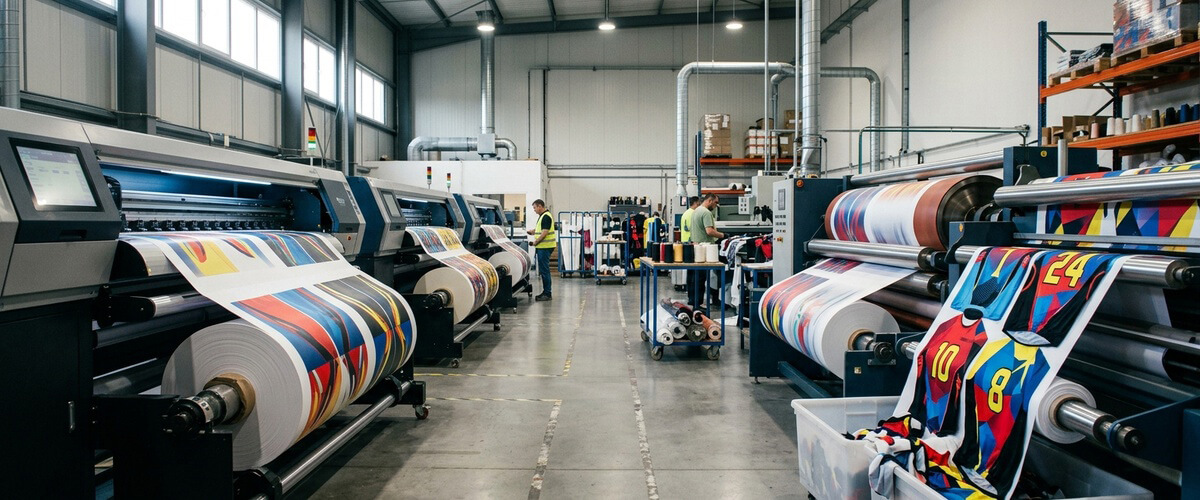

Feeding elastic knit rolls into a continuous rotary drum calender is challenging. The slight pressure of the entry rollers can cause loose paper to buckle. Tacky paper adheres to the web immediately upon hitting the drum, preventing wrinkles and blurred seams.
Follow these 4 practical operating steps to get the highest efficiency from your sticky transfer paper:
Step 1: Acclimate Rolls 24 Hours in Advance: Keep rolls in your print room (20°C–25°C, 40%–50% RH) for at least 24 hours before opening the moisture barrier wrap. This prevents moisture imbalance and ensures even tack activation.
Step 2: Pre-Press Elastic Fabric for 3 Seconds: Raw polyester-spandex fabric carries ambient moisture. A quick 3-second pre-press without paper expels steam and pre-shrinks the knit fibers before you apply the design.
Step 3: Calibrate Press Temperature and Dwell Time: Set your press to 190°C–205°C (374°F–401°F) with medium-to-firm pneumatic pressure (3 to 5 bar) for 25 to 40 seconds.
Step 4: Hot Peel or Warm Peel Smoothly: Once the press cycle finishes, peel the paper off in one continuous, smooth diagonal motion. Do not hesitate or stop mid-peel.
Ghosting on high-value athletic apparel is an unnecessary expense. By switching to heat-activated HM51 sticky sublimation paper (80–100gsm), your factory can eliminate fabric shift, prevent ghosting defects, and do away with manual taping.

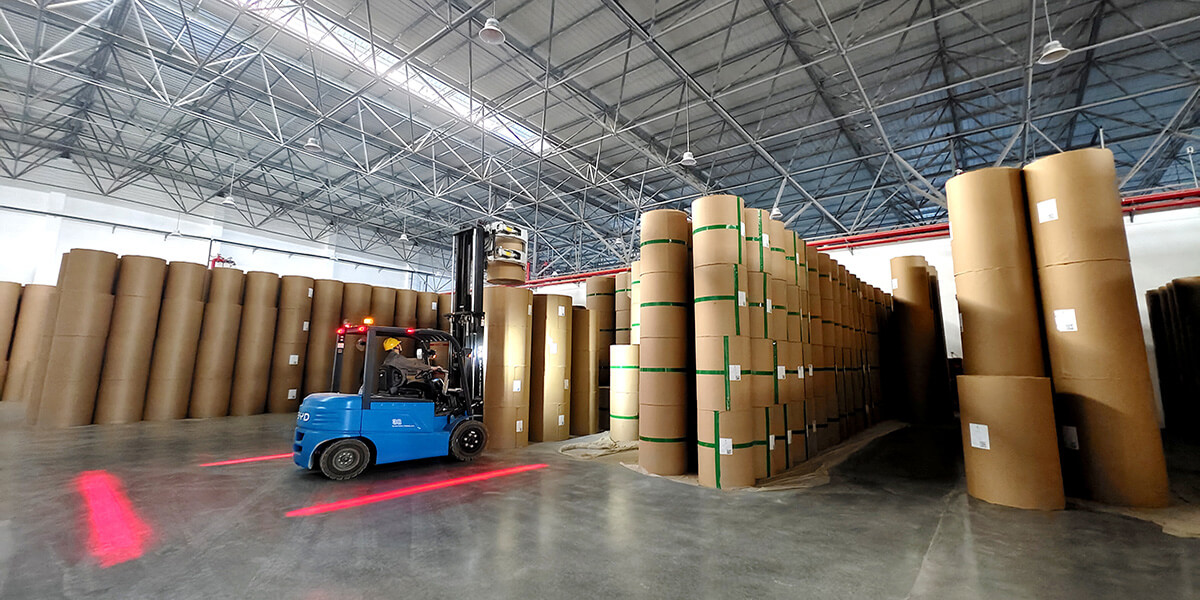

As an integrated specialty paper manufacturer backed by Xianhe Group's four industrial paper mills, Heming Paper produces HM51 in customized roll widths from 0.21m to 3.2m (±0.5mm tolerance) with consistent coating weight and guaranteed zero glue residue.
Ready to eliminate ghosting on your sportswear lines? Contact our technical sales team at ferrill@hemingpaper.com to request free 30m–50m test rolls and direct factory FOB/CIF quotations within 12 business hours.
1. What is the difference between sticky (tacky) and regular sublimation paper?
Regular sublimation paper has a standard microporous silica coating that releases ink without sticking. Sticky (or tacky) sublimation paper has an added heat-activated adhesive layer. It feels non-sticky when cold, but becomes lightly tacky when heated in a calender or heat press, locking stretchy fabrics in place to prevent ghosting.
2. Does sticky sublimation paper leave any glue residue on sportswear?
3. Why is sticky sublimation paper necessary for Lycra and spandex blends?
4. Can sticky sublimation paper run through standard industrial inkjet printers?
5. What basis weight (GSM) is best for sticky sublimation paper?
6. Can I test sample rolls of HM51 sticky sublimation paper before ordering bulk pallets?
