Views: 0 Author: Heming Paper Expert Team Publish Time: 2026-06-16 Origin: www.hemingpaper.com
If you run a sublimation print shop, you have probably stared at a spec sheet and wondered whether switching from 33gsm to 29gsm paper would save enough to matter — or whether going heavier to 42gsm would cut your defect rate enough to justify the higher cost per roll. You are not alone. Paper weight is one of the most consequential decisions in dye-sublimation printing, and getting it wrong shows up in your margins, your reprint rate, and how many meters you can push through the calendar before the shift ends.
This guide breaks down the three most common lightweight sublimation paper weights — 29gsm, 33gsm, and 42gsm — across the metrics that actually affect your bottom line: ink handling, transfer efficiency, printer compatibility, and cost per print. It is written for production managers, print shop owners, and purchasing agents who need to make a data-backed decision, not guess.
GSM stands for grams per square meter. In plain terms, it is the basis weight of the paper — how much a single square meter of it weighs. For sublimation transfer paper, GSM directly affects three things:
Thickness and stiffness — Heavier paper is thicker and less likely to curl or wrinkle during high-speed printing.
Ink load capacity — Heavier paper generally holds more ink before buckling, which matters for designs with heavy ink coverage.
Transfer rate — Lighter paper releases ink faster because there is less fiber mass for the dye to travel through, but it also absorbs less total ink.
GSM is defined by the ISO 536 standard for paper and board grammage determination (ISO 536:2012). All reputable sublimation paper manufacturers, including Heming Paper, test and label their rolls according to this standard.
We will walk through each weight in detail below, but here is the comparison at a glance:
Property | 29gsm | 33gsm | 42gsm |
|---|---|---|---|
Paper thickness (approx.) | 38–42 μm | 45–50 μm | 58–65 μm |
Ink load ceiling | ~180–220% ink limit | ~220–260% ink limit | ~260–300% ink limit |
Transfer rate (typical) | ≥92% | ≥90% | ≥88% |
Drying speed | Fastest | Fast | Moderate |
Best printer match | High-speed rotary / Kyocera head printers | Mid-to-high-speed roll-to-roll printers | General-purpose / Epson-head machines |
Curl resistance | Moderate | Good | Excellent |
Cost per linear meter (relative) | Lowest | Middle | Highest |
Best for | High-volume, low-ink-coverage runs; soft signage; fast fashion | Balanced production; sportswear; moderate ink loads | Detail-heavy designs; rigid substrates; wide-format; high ink coverage |
Note: Ink limit percentages above refer to total ink laydown as a percentage of substrate area. Actual ceilings vary by coating formulation and printer/ink combination. Transfer rates are measured under standard calendar press conditions at 200–220°C and 30–40 seconds dwell time.
At roughly 38–42 microns thick, 29gsm sublimation paper is the lightest weight commonly used in industrial production. It is the paper you reach for when throughput is everything and your designs skew toward lower ink coverage — think team jerseys with a single-color logo, soft signage with light gradients, or fast-fashion panels that change every three weeks.
Cost per print. Because you pay by weight, 29gsm gives you more linear meters per kilogram than any heavier alternative. For a high-volume shop running 10,000+ linear meters per day, the material cost difference between 29gsm and 33gsm can compound into thousands of dollars per month.
Faster drying and faster transfer. Less paper mass means less water retention after printing and quicker heat transfer at the calendar. The dye has a shorter path from the coated surface to the substrate, which slightly improves transfer efficiency — typically ≥92% under standard conditions.
Smaller roll diameter. More meters fit on the same core size, meaning fewer roll changes on the production floor.
Lower ink load ceiling. When your design exceeds roughly 200% total ink coverage, 29gsm paper can buckle or cockle, causing head strikes on printers with tight head gaps. This is especially true on Epson-head machines, which tend to lay down more ink per pass.
More sensitive to humidity. Ultra-lightweight paper absorbs ambient moisture faster. If your print room is not climate-controlled, you may see curl or waviness before the roll even hits the printer.
Not ideal for rigid substrates. On hard surfaces like aluminum panels or ceramic tiles, the thinner paper can shift slightly during pressing if not taped down perfectly, leading to ghosting.
High-volume garment decoration with light-to-moderate ink coverage
Soft signage and flag printing (polyester knit flags, feather banners)
Shops running Kyocera printhead-based printers optimized for lightweight media
Fast-fashion and promotional apparel with short shelf lives
Heming Paper product: 29gsm Lightweight Sublimation Paper Jumbo Rolls — manufactured on 100% virgin pulp with a proprietary coating formulation optimized for high-speed rotary presses.
If 29gsm is the specialist and 42gsm is the heavyweight, 33gsm is the generalist that shows up every day and rarely causes problems. It is the most commonly specified lightweight sublimation paper in mid-market garment decoration, and for good reason: it splits the difference between cost, ink handling, and reliability in a way that works across a wide range of printer and press combinations.
Broader printer compatibility. At roughly 45–50 microns, 33gsm paper feeds reliably through most roll-to-roll sublimation printers — including Epson, Ricoh, Mimaki, and Mutoh machines — without the head-strike risk that 29gsm can introduce on certain models.
Better ink load tolerance. You can push ink coverage into the 220–260% range with less risk of cockling. This makes 33gsm a safer choice for designs with medium-to-dark solid fills, gradients, and photographic reproduction.
Balanced economics. The per-meter cost is higher than 29gsm but meaningfully lower than 42gsm. For shops that do not need the extreme throughput of 29gsm or the heavy-ink headroom of 42gsm, 33gsm is often the cheapest option on a total cost per good print basis because it produces fewer rejects.
Not the best at either extreme. It will not save you as much on material as 29gsm, and it will not handle 300% ink loads as cleanly as 42gsm. If your production skews heavily toward one end of the spectrum, specialized paper may outperform it.
Slightly lower transfer rate than 29gsm. The extra fiber mass means a marginally longer dye path, which can translate to 1–3% lower transfer efficiency depending on press conditions and dwell time.
Sportswear and activewear with moderate-to-heavy ink coverage
Custom apparel shops running mixed job types (photos, vector art, solids)
Shops transitioning from 42gsm that want to reduce paper cost without risking quality
Print-on-demand fulfillment centers with diverse SKU mixes
Heming Paper product: 33gsm Lightweight Sublimation Transfer Paper Rolls — available in widths from 24" to 126" with OEM slitting options.
At 58–65 microns, 42gsm sublimation paper is the heaviest of the three lightweight papers discussed here. It is closer to what many printers consider “standard” weight, and it is the safest choice when image quality, registration accuracy, and defect-free output matter more than incremental paper savings.
Highest ink load ceiling. You can push total ink coverage past 280% on many coating formulations without the paper buckling. This matters a lot for photographic prints on rigid substrates (aluminum, MDF, ceramic), where ink density directly determines vibrancy and perceived quality.
Superior dimensional stability. Heavier paper resists curling, waving, and stretching during printing and pressing. On wide-format applications — especially those exceeding 64 inches — this stability translates to better registration and fewer misaligned transfers.
Most forgiving on older equipment. If your calendar press has uneven heat distribution or your printer has inconsistent paper handling, 42gsm absorbs those imperfections better than lighter weights.
Better for humid environments. In unconditioned print rooms — common in parts of Southeast Asia, South Asia, and Latin America — 42gsm holds its shape longer than lighter alternatives.
Higher per-meter cost. More grams per square meter means fewer meters per roll at the same roll weight. If your margins are tight and your ink coverage is routinely below 200%, you are paying for capacity you do not use.
Slower drying. More mass holds more water, which means longer drying time after printing and potentially slower press cycle times if your calendar setup does not have active drying.
Marginally lower transfer rate. The thicker fiber mat means the dye travels farther to reach the substrate surface. At standard dwell times, transfer rates typically land around 88% or above — still excellent, but slightly behind lighter papers.
Photo panels, aluminum prints, and rigid substrate decoration
Detailed garment prints with heavy ink coverage and fine gradients
Wide-format soft signage (billboard panels, building wraps)
Shops in high-humidity regions with limited climate control
Heming Paper product: 42gsm Lightweight Sublimation Paper Jumbo Rolls and Wholesale Sublimation Printing Paper Rolls — both manufactured under ISO 9001 quality management with full batch traceability.
Rather than give you a one-size-fits-all recommendation, here is a practical decision tree based on what we see in hundreds of print shops:
What is your average ink coverage? If it is consistently below 200%, 29gsm is worth testing. If it regularly exceeds 250%, start with 42gsm. If it varies, 33gsm is your safest bet.
What printer are you running? Kyocera-head printers (high-speed, lower ink laydown) pair naturally with 29gsm. Epson-head printers (higher ink laydown per pass) are more forgiving with 33gsm or 42gsm. Check your printer manufacturer’s recommended media weight range before switching.
What are you pressing onto? Soft substrates (fabric, knit polyester) tolerate lightweight paper well. Rigid substrates (metal, wood, ceramic) reward heavier paper with better registration and fewer ghosting issues.
What is your production volume? Above 5,000 linear meters per day, the material savings from 29gsm can justify a dedicated testing period. Below that threshold, the reliability of 33gsm often produces a lower reprint rate that more than offsets the per-meter premium.
What is your print room environment? If your facility has humidity control (45–55% RH recommended for sublimation paper storage and printing), lightweight papers perform consistently. Without it, bias toward heavier weights.
GSM is only one variable. Two rolls of 33gsm paper from different manufacturers can perform completely differently depending on:
Base paper composition. 100% virgin pulp (what Heming Paper uses across all grades) provides more uniform fiber distribution and better coating adhesion than recycled or mixed-pulp alternatives.
Coating formulation. The coating determines how much ink the paper accepts, how fast it dries, and how efficiently it releases dye during transfer. A well-engineered coating can make a 33gsm paper outperform a generic 42gsm one.
Manufacturing consistency. GSM variation within a roll or between batches causes visible print quality differences. ISO 536-compliant production with tight grammage tolerance is non-negotiable for serious production.
At Heming Paper, sublimation transfer paper is manufactured on vertically integrated production lines — from pulp preparation through base paper formation, coating, slitting, and packaging — at a facility with 54 production lines and over 1 million tons of annual paper capacity. This integration means the GSM specification on your roll label reflects what is actually on the roll, batch after batch.
It depends on the specific model and your ink load. Epson printheads typically apply more ink per pass than Kyocera heads, which increases the risk of cockling on 29gsm paper at high coverage levels. Many shops successfully run 29gsm on Epson printers for light-coverage designs, but 33gsm is the safer starting point if you run mixed job types. Always test a sample roll before committing to a full production run.
Generally, yes. Because there is less fiber mass between the coating layer and the substrate, the dye travels a shorter distance during heat transfer. The difference is measurable — typically a 2–4% transfer rate advantage for 29gsm over 42gsm — but it is rarely visible to the naked eye on finished product. The real-world advantage of faster transfer is that you can sometimes reduce dwell time at the calendar, increasing throughput.
For the majority of mid-market print shops, 33gsm is the best choice — not as a compromise, but because it is genuinely optimal for the most common use case: moderate ink coverage on fabric substrates, printed on mid-speed roll-to-roll equipment. It is reliable, predictable, and easy to source. The only reason to deviate is if your specific production profile clearly skews toward the extremes that 29gsm or 42gsm serve better.
Store rolls horizontally in their original moisture-barrier packaging until ready to use. Keep the storage area at 45–55% relative humidity and 18–25°C (65–77°F). Once a roll is opened, use it within 48–72 hours if possible, especially in humid environments. Lighter papers (29gsm) are more sensitive to ambient moisture absorption than heavier ones. For more detailed guidance, see Heming Paper’s FAQ page.
There is no universal “best” sublimation paper weight. The right choice depends on your printer, your press, your designs, your substrates, and your economics. But here is the rule of thumb we steer most customers toward:
Choose 29gsm if you print high volumes at low-to-moderate ink coverage on fabric and speed is your primary lever for margin improvement.
Choose 33gsm if you run a mixed-production shop and want one paper weight that handles most jobs reliably without the premium of heavier stock.
Choose 42gsm if you print heavy-coverage or photographic designs, work with rigid substrates, operate wide-format equipment, or print in an uncontrolled environment.
Still unsure? Contact Heming Paper for a free sample roll consultation. Our team can help you match paper weight, width, and coating formulation to your specific production setup — and we ship samples internationally so you can test before you commit.

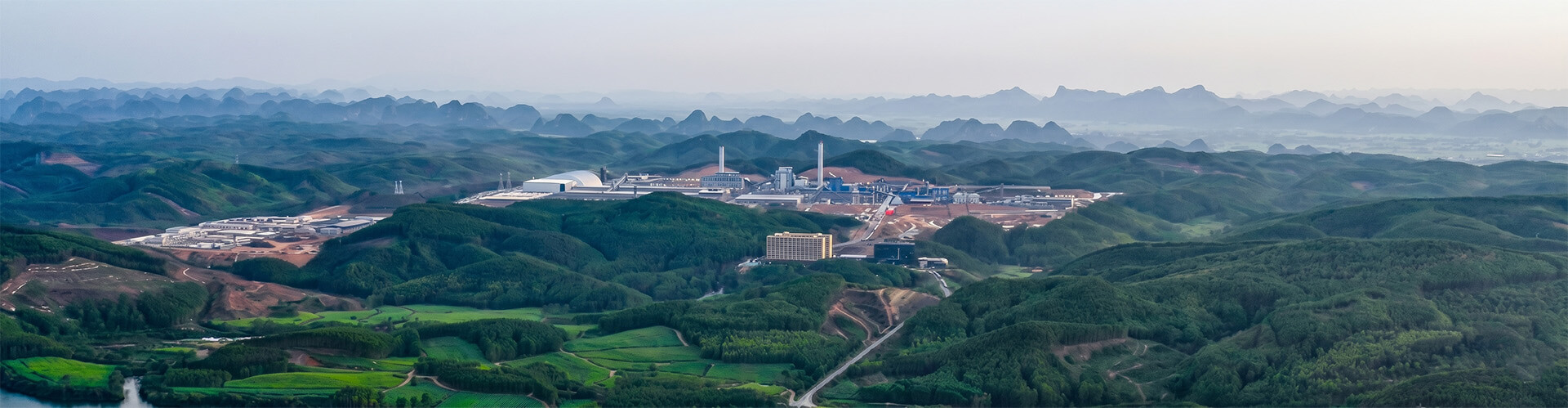

Published by Heming Paper — a specialty paper manufacturer based in Quzhou, Zhejiang, China, serving print shops and converters in 30+ countries. All Heming sublimation papers are manufactured with 100% virgin pulp on vertically integrated production lines under ISO 9001 quality management.
