What happens when a thin, oil-resistant sheet meets the heavy demands of high-speed printing? This is a big question for converters every day. Bakery bags, deli wraps, and fast-food packaging need grease-resistant substrates. They must look good and block oil and moisture.
Getting ink adhesion right on these materials is tough. The coating that keeps grease out can also stop ink from sticking. This leads to smudging, poor color, and slow drying on press.
This article shares a real trial comparing flexographic and rotogravure printing on greaseproof papers. We examine how each method handles drying speed, ink transfer, and print quality. Our goal is to give converters and brand owners the data they need to make informed choices.
Flexographic and rotogravure printing methods each show distinct strengths on grease-resistant substrates.
Ink adhesion issues often stem from the very coatings that provide grease resistance.
Drying speed directly affects print clarity and production line efficiency.
Real trial data offers converters practical benchmarks for material selection.
Food-safe barrier properties must be preserved throughout the printing process.
Choosing the right printing method can reduce waste and improve final packaging quality.
Greaseproof papers are special because they block oil and grease without plastic. They do this with a dense fiber structure. This is made by intense mechanical refining, which makes the fibers tight and less porous.
This refining is often followed by super-calendaring. This process uses heated rollers to smooth the paper. It makes the paper very light, often under 40 gsm, but strong against fats and moisture.
Now, some producers don't use fluorochemical treatments. They rely on fiber density to meet food-safety standards. This change is due to pressure from regulators and consumers for PFAS-free packaging.
The same tight fibers that block grease also make printing tricky. Inks don't bond well with these fibers. This can lead to smudging, rub-off, or delamination when handled.

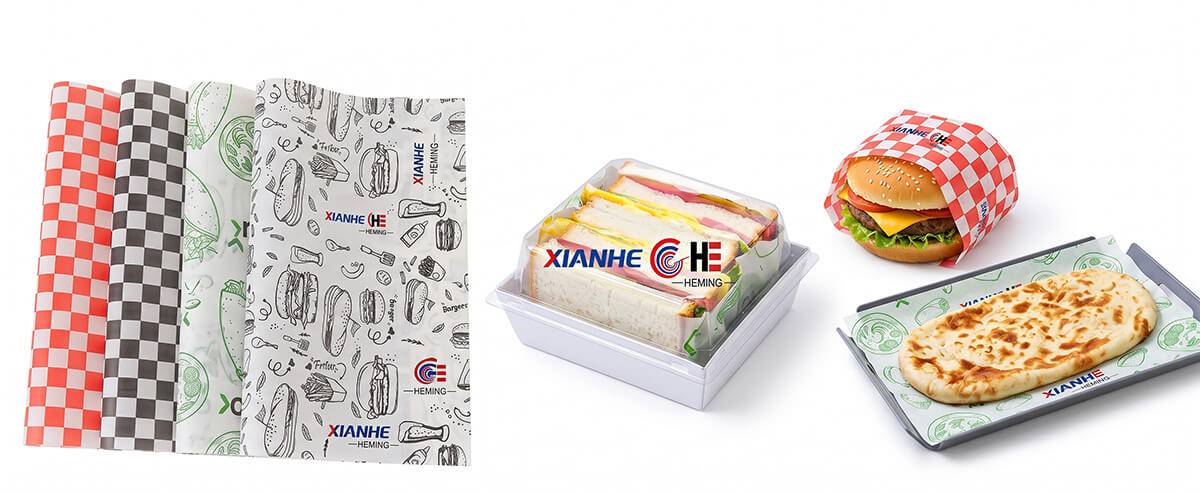

Greaseproof papers are becoming more popular for food wraps. They're used in bakery bags, sandwich wraps, and deli sheets. But, producers need to be able to print on them reliably. That's why testing across different printing methods is crucial today.
The goal was clear: find out which printing method, flexo or rotogravure, works best on lightweight greaseproof paper. Many converters stick with what they have, not what's best for grease-resistant paper. This study aimed to change that by testing both methods side by side.
Three key areas were studied: ink adhesion strength, drying efficiency, and production line runnability. These factors impact scrap rates, changeover time, and print quality. Poor adhesion or slow drying can lead to costly reprints.
Which printing on greaseproof paper flexo method provides better ink lay-down at commercial speeds?
How do drying conditions, like temperature and airflow, affect production speed?
What changes can be made to reduce smudging, cracking, or poor color density?
Where does each method excel for grease-resistant, lightweight paper?
To find answers, controlled trials were used instead of just comparing. Each test measured adhesion, drying, and runnability through specific tests.
Evaluation Criterion | Measurement Method | Relevance to Converters |
Ink Adhesion | Tape-pull and rub resistance tests | Predicts shelf durability and transport resistance |
Drying Efficiency | Line-speed threshold before smearing occurs | Determines maximum practical production throughput |
Runnability | Defect count per 1,000 linear feet | Impacts waste levels, downtime, and unit cost |
This research aims to guide converters with evidence, not just guesses. The results compare real trial data, not just claims, to help make better decisions for packaging lines.
A good printability study starts with clear methods. This includes the materials and equipment used. Every test in this study used the same materials. This makes the results easy to repeat in any facility.
The study focused on specific papers, inks, and presses. These choices were made to test their effects.
The team picked lightweight greaseproof papers with a weight of 28 to 45 grams per square meter (gsm). This weight is common in bakery wraps and food packaging. The papers were thin enough to bend but thick enough to block grease.
Each roll had a special surface treatment. This treatment helped the paper print well while keeping it from letting grease through. Grease-resistance ratings ranged from Kit 6 to Kit 10. This range showed how different coatings and fibers affect printing.
Papers came from three different mills. This helped the team avoid any issues specific to one supplier. They could focus on how weight and coating affect printing.
Sample ID | Grammage (gsm) | Caliper (mm) | Grease Resistance (Kit Rating) |
GP-28 | 28 | 0.045 | Kit 6 |
GP-33 | 33 | 0.052 | Kit 7 |
GP-40 | 40 | 0.059 | Kit 9 |
GP-45 | 45 | 0.065 | Kit 10 |
For flexographic trials, two ink types were used. One was a water-based acrylic for low VOCs. The other was a solvent-based nitrocellulose for quick tack on coated papers.
Rotogravure trials used a single solvent-based gravure ink. This ink was made for cellulose-based papers and worked well with heat-set drying tunnels.
Press setup was also key. Flexo presses used anilox rolls at 400 lines per inch (lpi) with a cell volume of 3.5 billion cubic microns per square inch. Rotogravure cylinders had engraving depths between 28 and 34 microns, perfect for food-contact graphics.
Anilox roll selection determines nearly half of the final print quality outcome. Get the cell geometry wrong, and no ink chemistry can fully compensate.
Every press was set up to avoid web stretch. Lightweight greaseproof paper tears easily if pulled unevenly. Technicians recorded important details like dwell time and line speed for each run. This detail is crucial for the results in later sections.
Our team tested flexographic printing on lightweight greaseproof paper. The results showed how well the ink stuck and dried. We tried different inks and settings to see what worked best.
What we found is important for converters to know. It helps them understand what works and what doesn't.
Ink adhesion was the first thing we checked. We used tape-pull tests right after printing and again after 24 hours. The results showed that some settings worked better than others.
Lower cell volumes worked okay but sometimes the colors weren't as deep. Higher cell volumes made the colors richer but sometimes caused ink to pool. The best results were between 3.5 and 4.5 BCM.
Anilox Cell Volume (BCM) | Tape-Pull Pass Rate | Rub Resistance Rating |
2.5–3.5 | 78% | Moderate |
3.5–4.5 | 96% | Excellent |
5.0 and above | 61% | Poor to Moderate |
Rub resistance tests also showed good results. Samples with mid-range anilox volumes lasted over 50 dry rub cycles. Higher volumes didn't do as well. When failures happened, it was usually flaking along fold lines.
Drying changed as line speeds increased. At lower speeds, inks dried well, leaving prints smudge-free. But at higher speeds, drying issues became a problem.
At speeds over 350 feet per minute, inks didn't dry fully. This caused blocking and smudging. Lightweight greaseproof paper was more affected because it absorbs moisture slowly.
Below 200 fpm: Full drying achieved with no smudging or blocking observed.
200–300 fpm: Acceptable drying, though minor tackiness appeared on areas with heavier ink coverage.
Above 350 fpm: Consistent under-drying, visible smudging, and occasional blocking on rewound rolls.
These findings suggest a limit for converters without extra drying equipment. Adding a hot-air dryer or using finer anilox engraving helped reach 300 fpm without quality loss. This is a good solution for higher-volume production.

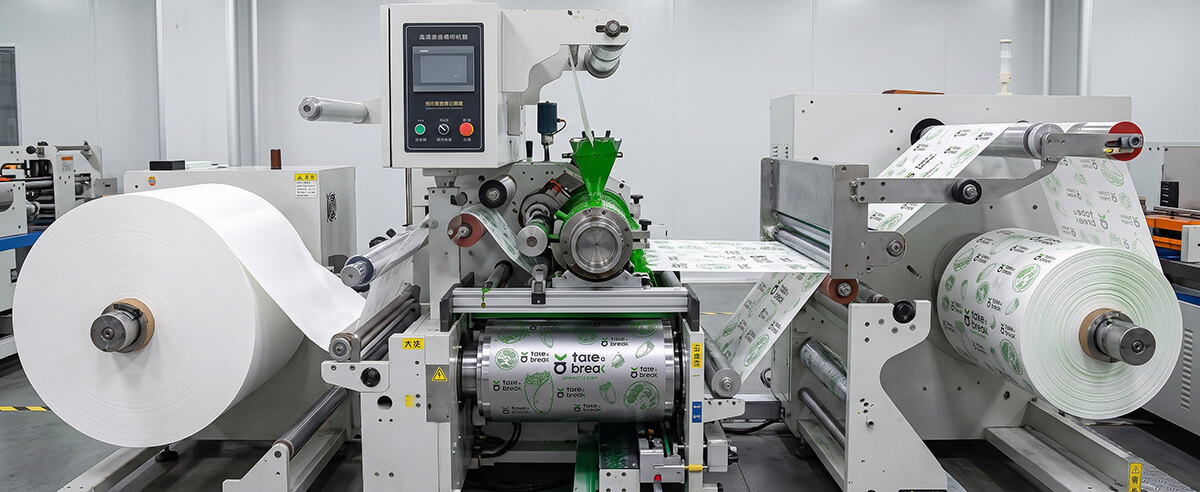

When greaseproof paper stocks went through rotogravure presses, the results were different from flexo alone. The engraved cylinder system changed how ink settled on the paper. This gave converters a clearer view of rotogravure's strengths and weaknesses.
The test panels went through standard production conditions, like real-world food wrap making. Researchers looked at adhesion strength, drying speed, and print consistency with different cylinder setups.
The depth of cylinder engraving was key in the trials. Deeper cells held more ink, improving color but sometimes affecting bond quality. Shallower engraving made thinner ink films that stuck better but lacked richness.
Tape-pull adhesion tests showed a clear pattern. Mid-range engraving depths, around 30 to 35 microns, offered the best balance. They had strong ink transfer and surface bond quality.
Engraving Depth (microns) | Ink Transfer Efficiency | Adhesion Rating |
20-25 | 78% | Moderate |
30-35 | 92% | Excellent |
40-45 | 85% | Good |
50+ | 71% | Fair |
The greaseproof coating greatly affected these results. Papers with tighter surface density resisted ink, so engraving depth needed to be more precise.
Solvent-based rotogravure inks need careful evaporation control, more so on lightweight substrates. Trial data showed drying tunnel temperatures between 140°F and 160°F worked best. This kept the paper flat while ensuring full solvent flash-off.
Faster drying rates reduced smearing during rewind but high temperatures made the coating brittle. Finding that middle ground was key for consistent quality.
Cylinder wear was another factor affecting long-term performance. Extended production runs widened engraved cells, changing ink transfer volume over time.
Consistent cylinder maintenance schedules directly correlate with stable print quality across high-volume rotogravure runs on lightweight paper substrates.
Flexographic Technical Association
These findings are crucial for food wrap rotogravure printing machinability in commercial settings. Converters running extended shifts must monitor cylinder condition closely. Even minor wear can affect ink density and color consistency. Regular inspections and proper drying calibration kept machinability steady during the trial's longest runs.
Overall, rotogravure showed strong potential for high-speed, high-volume food wrap production. It rewarded precise engineering choices with reliable adhesion and clean drying, provided operators stayed attentive to cylinder condition and thermal settings.
When it comes to printing greaseproof papers, neither method is clearly better. Flexo printing is faster and cheaper to set up. Rotogravure, on the other hand, offers sharper details and consistent ink lay-down over long runs.
Ink adhesion is better with rotogravure, making it less likely to scuff during folding. But, flexo can catch up with the right anilox rollers and ink viscosity.
Drying speed is where flexo shines. It dries faster at standard speeds because it uses less ink. Rotogravure needs more careful drying but gives deeper colors when set right.
Print resolution is a clear win for rotogravure. It produces sharper edges for fine text and detailed graphics. Flexo does well with bold graphics but struggles with intricate designs.
Choosing between flexo and rotogravure depends on the run length. Flexo is better for short runs because it's cheaper and quicker to set up. Rotogravure is more cost-effective for long runs, despite higher initial costs.
"The economics of gravure only make sense once you clear the break-even volume—below that threshold, flexo remains the smarter investment for converters working with greaseproof papers."
Packaging Industry Trade Perspective
Rotogravure cylinders last longer, often over a million impressions. Flexo plates wear out faster under high pressure. This is crucial for brands that need consistent packaging over time.
Factor | Flexographic Printing | Rotogravure Printing |
Setup Cost | Lower | Higher |
Print Resolution | Good | Excellent |
Ideal Run Length | Short to Medium | Medium to Long |
Plate/Cylinder Lifespan | Moderate | Long |
For large-scale greaseproof paper printing, rotogravure might be worth the extra cost. But, for smaller operations or those needing quick design changes, flexo's flexibility and speed are more valuable.
Three big problems with ink adhesion came up in our tests on lightweight greaseproof paper. These were poor ink wetting, surface cracking, and delamination during converting. Each problem has a clear cause. Once converters know these causes, fixing them is much easier.
Poor wetting looks like spotty ink coverage or tiny pinholes. This happens when the paper's surface energy is too low for the ink. The wax or silicone coatings on greaseproof paper often cause this. Low dyne levels stop the ink from spreading evenly, leading to weak spots.
Ink cracking and delamination happen when the paper is folded or flexed. This is because the ink film is too rigid for the flexible paper. Using the wrong resin in the ink makes this problem worse with repeated flexing.
Corona treatment quickly fixes wetting problems. It raises the surface energy above 38 dynes per centimeter, ensuring proper ink transfer. Many converters now use a second corona station mid-line to keep energy levels up on fast-moving webs.
Primer coatings are a more lasting solution for heavily treated greaseproof stock. They create a thin, food-safe layer that helps ink bond better. Changing the ink formulation to softer resins and adding plasticizers also helps prevent cracking when packaging is folded or creased.
Adhesion Challenge | Root Cause | Corrective Measure |
Poor ink wetting | Low surface energy from wax/silicone coating | Corona treatment before printing |
Ink cracking | Rigid resin system mismatched to flexible substrate | Softer ink resins, added plasticizers |
Delamination under fold | Weak ink-to-fiber bond after converting | Food-safe primer coating layer |
Uneven color density | Inconsistent moisture content across web | Tighter humidity control at press infeed |
These challenges don't need a complete overhaul of the printing process. With targeted corona treatment, the right primer, and a few tweaks to the ink, converters can get strong, reliable adhesion on lightweight greaseproof papers. This is done without losing print quality or speed.
A well-tuned dryer can make a good print job even better. But a dryer that's not set right can waste paper, ink, and time. This is true, but even more so for lightweight greaseproof papers.
Getting drying right isn't about just turning up the heat. It's about finding the right balance of heat, airflow, and ink chemistry for the paper. This is because the paper can easily get damaged if it gets too hot.
Temperature zones need to be set up carefully. Water-based flexo inks dry best between 140°F and 160°F in short zones. Solvent-based rotogravure systems do better at slightly lower temperatures with stronger airflow. Going too high can cause the paper to become brittle and curl.
Airflow is often more important than heat. More airflow helps dry the ink faster without raising the paper's temperature. This keeps the paper safe. Also, good exhaust extraction stops solvent vapors from messing up the print.
Changing the ink can also help. Making the ink thinner or adding drying helpers can speed up drying. But these changes should be made slowly to avoid harming the ink's adhesion.
Parameter | Flexo Setting | Rotogravure Setting | Impact on Output |
Dryer Temperature | 140°F–160°F, multi-zone | 130°F–150°F, single zone | Prevents curling and scorching |
Airflow Rate | Moderate turbulence | High turbulence | Speeds evaporation safely |
Ink Solvent Blend | Fast-evaporating co-solvent added | Reduced viscosity, standard solvent | Shortens cure time per station |
Line Speed Capacity | Up to 15% faster | Up to 10% faster | Higher daily throughput |
These changes lead to fewer bad rolls, less downtime, and faster line speeds. When drying is just right, converters can print faster, waste less, and have more consistent quality.
Seeing a substrate on a real production line shows things lab tests can't. The team moved from a pilot press to a commercial rotogravure line after trial runs. This change revealed real food wrap rotogravure printing machinability challenges under constant tension and web travel.
Web tension control was key from the start. Greaseproof paper is light and stretches easily. So, operators lowered unwind tension by about 15% compared to kraft stock. This adjustment kept the web flat and avoided slack that could cause misregistration.
Tracking stability was steady once tension settings were right. Edge guide sensors caught small drifts early, keeping the paper centered during long runs. Even small changes in nip pressure affected tracking more with this paper than with heavier ones.
Static buildup was a big problem. Greaseproof paper, being thin, picks up static charge fast, more so in dry environments. Static bars near the unwind and rewind stations helped reduce sheet cling and print defects from dust.
Wrinkling happened sometimes at speeds over 500 feet per minute. Changing idler roll alignment and easing tension gradients fixed most issues without slowing down.
"Machinability isn't just about running fast—it's about running consistently."
Production supervisor overseeing the trial
The table below shows the main issues found and how they were fixed on the floor.
Issue Observed | Likely Cause | Corrective Action |
Web wrinkling | Uneven tension gradient | Adjusted idler roll alignment |
Static buildup | Low humidity, thin caliper | Installed static bars at unwind and rewind |
Tracking drift | Nip pressure fluctuation | Recalibrated edge guide sensors |
Roll slippage | Excess unwind tension | Reduced tension by 15% |
These observations show that food wrap rotogravure printing machinability relies on tension control and environmental factors, not just ink or cylinder design. Knowing these early on helps avoid costly downtime when the job grows to full commercial scale.
Both flexographic and rotogravure printing work well on lightweight greaseproof papers. Rotogravure had better ink adhesion and color consistency. Flexographic printing was faster and cheaper for short runs.
Rotogravure is better for long runs because it ensures precise ink laydown and durability. Adjusting anilox specs, fine-tuning ink viscosity, and calibrating dryer temperatures can improve quality. These steps help reduce waste and boost first-pass quality, regardless of the press used.
Packaging converters and brand owners now have clear guidance on choosing between flexographic and rotogravure. This choice depends on order volume, design complexity, and food-contact needs. Greaseproof papers are key in food packaging, meeting growing demand for sustainable, functional, and attractive materials.
Testing press settings against real production conditions is crucial. Converters who plan ahead will see fewer adhesion failures and better drying performance. This ensures consistent quality in their greaseproof paper packaging runs.
What makes lightweight greaseproof papers different from standard packaging papers when it comes to printing?
Lightweight greaseproof papers have a dense fiber structure and controlled porosity. This makes them resistant to oil and moisture. They are often used for food packaging like bakery bags and deli wraps. These properties also affect printing. They lower surface energy and reduce ink absorption. This makes printing on greaseproof paper more challenging than on standard papers.
Which printing method performs better on greaseproof papers—flexography or rotogravure?
Both flexography and rotogravure have their strengths. Flexography is faster and cheaper for short runs. Rotogravure offers better print quality and consistency at high speeds for long runs. The best choice depends on the production volume, budget, and specific needs of the greaseproof paper.
What causes poor ink adhesion on greaseproof papers, and how can it be corrected?
Poor ink adhesion often comes from surface energy mismatches. It can also be due to wrong ink formulation or flexo system issues. To fix it, corona treatment can raise surface energy. Using primer coatings and adjusting ink chemistry can also help. These steps reduce cracking and delamination problems.
How does drying performance differ between flexo and rotogravure printing on these substrates?
Flexographic drying is sensitive to line speed. At high speeds, under-drying can cause smudging or blocking. Rotogravure drying relies on solvent evaporation rates and cylinder condition. Optimizing dryer temperature, airflow, and ink formulation is key. This ensures print quality and production throughput for both methods.
What is food wrap rotogravure printing machinability, and why does it matter?
Food wrap rotogravure printing machinability refers to how well a substrate handles production conditions. It includes web tension control, tracking stability, and resistance to wrinkling or static buildup. This is important because lab results don't always match real-world performance. Testing machinability is crucial for converters using greaseproof papers in food packaging.
Can ink adhesion problems on greaseproof papers be fully resolved with technical adjustments?
Yes, in most cases. Trial data shows that surface treatments, tailored ink systems, and proper press calibration can solve adhesion challenges. Greaseproof papers present unique hurdles, but these can be overcome with the right technical approach.
What ink systems work best for printing on greaseproof paper flexo processes?
Water-based flexo inks are often used for food packaging due to their safety and compatibility with greaseproof coatings. Solvent-based systems can dry faster in some cases. The choice also depends on anilox roll specifications, as cell volume affects ink transfer.
How do converters decide between flexo and rotogravure for a specific greaseproof paper packaging project?
The decision depends on production volume, image complexity, and budget. Flexography is better for shorter runs and simpler designs. Rotogravure is ideal for long, high-volume runs needing fine detail and consistent quality. Reviewing case study data helps converters make an informed choice based on ink adhesion, drying behavior, and machinability.
