Sourcing Silicone Paper Jumbo Rolls for Air Fryer Liners (38–45gsm Guide)

Why do some disposable air fryer liners curl, split during bowl-pressing, or scorch at 425°F—even when the supplier claims they use standard 40gsm food-grade parchment paper?

If you run a paper converting plant or manage a private-label kitchenware brand, you know that air fryer liners take far more abuse than flat oven baking sheets. Inside a modern convection air fryer, rapid hot-air vortices, bubbling grease, and intense heating elements push ordinary paper to its breaking point.

When a liner tears during deep-draw molding or turns brittle in a customer's kitchen, the problem starts at the mother reel.

In this sourcing guide, we explain how to specify industrial silicone baking paper jumbo rolls to manufacture high-margin air fryer parchment paper liners. You will learn how to choose between 38gsm and 45gsm grades, verify 100% PFAS-free compliance, and maximize converting yield on high-speed die-cutting and thermoforming lines.

Key Takeaways

• Match GSM to liner shape: Use 38–40gsm jumbo rolls for flat perforated rounds and squares; step up to 42–45gsm for pleated bowl-shaped liners that require deep-draw folding without pleat splitting.

• Demand virgin long-fiber pulp: Only 100% virgin wood pulp delivers the machine-direction tensile strength (MD > 2.5 kN/m) and wet burst resilience needed to hold heavy, greasy foods without tearing.

• Verify solvent-free double-sided silicone: Addition-cure organic silicone coatings ensure instant food release on both sides and withstand continuous cooking at 230°C (446°F–450°F) without smoking or curling.

• Eliminate PFAS regulatory risk: Achieve Kit Value 11–12 grease resistance through high-density mechanical pulp refining and silicone cross-linking, keeping Total Organic Fluorine (TOF < 50 ppm) compliant with US FDA and EU LFGB standards.

• Optimize slitting & splice rates: Source custom reel widths (300mm–1,600mm) and long-length mother reels (2,000m–12,000m) with guaranteed low splice counts to minimize machine downtime.

Why Air Fryer Liner Converting Demands Specialized Jumbo Rolls

Converting pleated basket liners puts three times more mechanical stress on paper fibers than sheeting flat bakery pan liners.

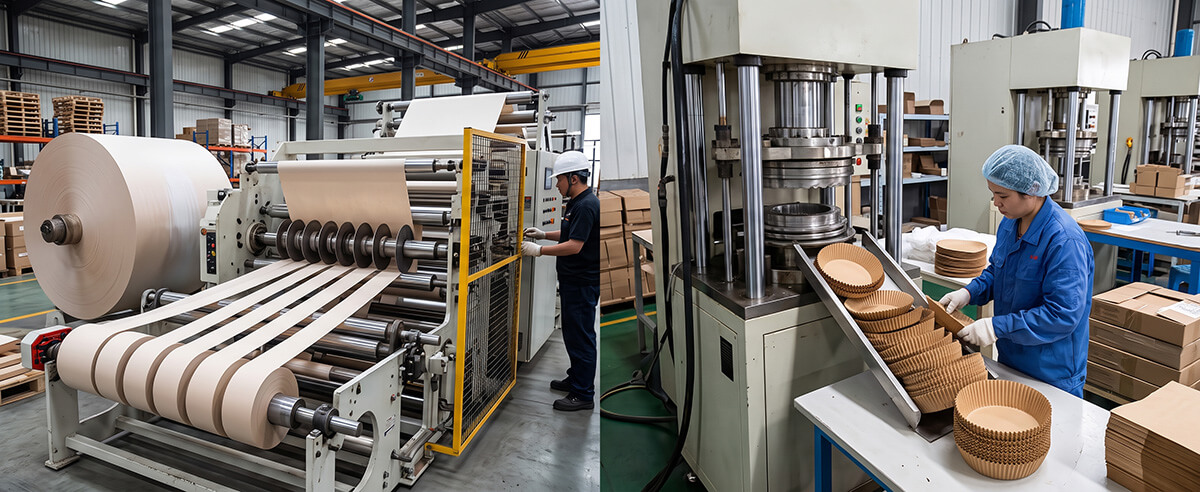

Making a standard flat baking sheet only requires unwinding, rotary slitting, and cross-cutting. However, producing modern air fryer parchment paper liners involves two demanding converting processes:

1. High-Speed Pneumatic Die-Punching (Perforated Liners): The paper web runs through precision punching dies that stamp 26 or more ventilation holes per sheet while cutting round or square outer contours. Poorly refined paper sheds lint, clogs punch dies, and leaves ragged edges.

2. Heated Deep-Draw Pleating (Bowl/Basket Liners): To form 3D bowl-shaped liners with 4.5cm–5cm raised walls, circular blanks are pressed into heated metal molds at 120°C–150°C. The paper must stretch, fold into dozens of tight side pleats, and permanently lock its shape.

If your base paper contains recycled short fibers or uneven moisture, the side walls will crack during molding—or flatten back out inside the retail packaging box.

38gsm vs. 40gsm vs. 42gsm vs. 45gsm: Selecting the Right Basis Weight

Choosing the right basis weight balances your per-unit material cost against structural rigidity in the air fryer basket.

When sourcing wholesale silicone baking paper, buyers often assume heavier paper is always better. In reality, each grammage between 38 GSM and 45 GSM serves a distinct market segment and appliance style.

1. 38 GSM: Cost-Optimized Grade for Flat Perforated Rounds

A 38gsm mother reel gives you approximately 5% more surface area (square meters) per metric ton than 40gsm paper. Because flat perforated liners sit directly on the metal crisper plate and do not need to support vertical side walls, 38gsm is the smart choice for high-volume e-commerce value packs and commercial bamboo steamer rounds.

2. 40 GSM: The Global Industry Standard for All-Around Converting

40 GSM is the most widely specified weight for both pre-cut perforated sheets and standard 6.5-inch to 8.5-inch bowl-shaped liners. It offers the sweet spot between yield per ton, smooth pleat forming, and anti-curl stiffness at 450°F (232°C).

3. 42 GSM: Reinforced Stiffness for Large Dual-Zone & Square Baskets

Rectangular dual-basket air fryers (such as Ninja DualZone and Instant Vortex models) and 9-inch to 10-inch square fryers have longer unsupported wall spans. Stepping up to 42 GSM keeps the raised edges from collapsing inward when loaded with heavy sauces, marinated wings, or melted cheese.

4. 45 GSM: Heavy-Duty Grade for Extra-Deep Roaster Liners & Multi-Use

Premium supermarket private labels and commercial kitchen suppliers prefer 45 GSM for extra-deep bowl liners and toaster oven trays. The added caliper resists tearing even when soaked in meat juices and allows 3 to 5 reuses in commercial baking applications.

Core Engineering Specs: Virgin Pulp, Solvent-Free Silicone & Grease Barrier

True greaseproof and non-stick performance comes from high-density fiber beating paired with platinum-cured silicone—never from plastic coatings.

When auditing a silicone baking paper jumbo roll manufacturer, your quality assurance team should verify four laboratory benchmarks on the Technical Data Sheet (TDS):

• 100% Virgin Bleached or Unbleached Kraft Pulp: Unbleached natural brown liners are surging in retail popularity because consumers associate kraft brown with eco-friendly, chlorine-free safety. Heming Paper manufactures both unbleached natural brown and ECF bleached white grades with zero fluorescent whitening agents (FWAs).

• Solvent-Free Double-Sided Silicone System: We apply a food-grade addition-cure organic silicone coating to both sides of the sheet. The double-sided coating ensures that no matter how the consumer places the liner—or how liners are stacked in 100-piece blister boxes—they never stick to food or each other.

• Kit Level 11–12 Grease Impermeability: Tested under TAPPI T559 cm-12, a Kit Value of 11 to 12 guarantees that boiling animal fats and vegetable oils will not penetrate the sheet during a 40-minute cooking cycle.

• 450°F (232°C) Thermal Stability: Our silicone cross-linking and dense cellulose structure withstand continuous dry heat up to 230°C (446°F–450°F) and short peaks up to 250°C (482°F) without charring, smoking, or releasing off-odors.

"A true air fryer grade jumbo roll must hold boiling oil on the top surface while staying flexible enough to fold into 50 micro-pleats without a single fiber crack."

Global Food Contact Compliance: Why 100% PFAS-Free Is Mandatory

Retailers and customs authorities across North America and Europe now reject food packaging that contains fluorinated greaseproofing agents.

Historically, some low-cost paper mills added per- and polyfluoroalkyl substances (PFAS) to cheap, porous paper to fake high oil resistance. Today, strict US state bans and European Union regulations prohibit PFAS in food-contact packaging.

At Heming Paper, our food-grade paper achieves its oil barrier physically—by refining virgin wood pulp fibers until they bond into a tight, pore-free network, followed by supercalendering and pure silicone curing.

Every shipment of jumbo rolls or finished disposable air fryer paper liners is backed by verifiable third-party compliance documentation:

• US FDA 21 CFR 176.170 & 176.180: Certified safe for direct contact with aqueous and fatty foods at high temperatures.

• EU Regulation (EC) No 1935/2004 & German LFGB: Passes strict European sensory (odor/taste transfer) and overall migration limits.

• SGS-verified PFAS-free reports: Confirmed Total Organic Fluorine (TOF < 50 ppm) under EN 14582 and EPA Method 537M.

• FSC®, BRCGS, Kosher & ISO 9001:2015: Ready for multinational supermarket audits and Amazon compliance uploads.

Optimizing Converting Runnability: Slitting Widths, Cores & Splice Control

Unplanned machine stops during high-speed bowl pressing destroy your factory's daily converting margin.

To maximize output on your slitting, die-cutting, or thermoforming lines, your jumbo roll supplier must match your exact mechanical unwind specifications:

• Custom Slitting Widths (300mm to 1,600mm): Whether you run a narrow single-lane bowl forming press (e.g., 300mm–450mm web width) or a multi-lane rotary die cutter (1,200mm–1,600mm width), precision CNC slitting eliminates trim waste.

• Extended Reel Lengths (2,000m to 12,000m): Longer master reels reduce hoist changes and web re-threading frequency across 24-hour shifts.

• Low Splice Guarantee & Uniform Tension: We strictly limit joints per jumbo roll and wind every reel on high-crush 3-inch (76mm) or 6-inch (152mm) cores with uniform cross-web tension to prevent telescoping and web breaks.

• Seaworthy Moisture-Barrier Packaging: We wrap each jumbo roll in moisture-proof kraft paper and heavy-duty PE film, then strap it to fumigation-free pallets with rigid edge protectors to prevent humidity damage during ocean freight.

Should You Import Jumbo Rolls or Finished Pre-Cut Air Fryer Liners?

Heming Paper supports both industrial paper converters and retail brand owners with flexible supply models.

Depending on your equipment and business model, you can source either raw mother reels or turnkey retail-ready liners directly from our Quzhou manufacturing base:

Conclusion: Partner with a Vertically Integrated Specialty Paper Mill

Sourcing reliable raw materials for air fryer liners doesn't have to be a gamble. Backed by Xianhe Group's four specialty papermaking bases, Zhejiang Heming New Material Technology Co., Ltd. controls every step, from refining virgin pulp and base papermaking to solvent-free silicone coating and automated converting.

Whether you need container loads of 38–45gsm silicone paper jumbo rolls for your converting machinery or turnkey perforated and bowl-shaped air fryer liners ready for retail shelves, our direct-mill pricing eliminates trading markups and guarantees batch-to-batch stability.

Ready to test on your production line? Contact our export engineering team at ferrill@hemingpaper.com or WhatsApp +86 173-5701-3638 to request free testing sample rolls, pre-cut liner kits, and a customized FOB/CIF/DDP quotation within 12 business hours.
