How to Select Glassine Release Liner (39–78gsm) for High-Speed Die-Cutting

Why do high-speed rotary label presses suffer from sudden matrix breaks and anvil strikes—even when running standard 60gsm glassine liner?

In pressure-sensitive label converting, a glassine release liner does far more than just carry the face stock. During high-speed rotary kiss-cutting, the paper acts as a precision structural anvil, absorbing blade impact while supporting clean waste-matrix stripping at 200 to 300+ meters per minute.

When a liner has uneven thickness (caliper) or low fiber density, rotary dies either fail to cut through the adhesive or slice deep into the paper backing—triggering web breaks that halt production.

In this technical guide, we explain how to select the right glassine paper roll across the 39–78gsm range, how supercalendered density reduces silicone consumption, and what to check before loading master reels onto your converting line.

Key Takeaways

• Lock in caliper uniformity: Rotary dies operate within micron-level tolerances. Uniform cross-web thickness prevents deep anvil scoring on one lane and uncut adhesive threads on the other.

• Demand high density (≥ 1.1 g/cm³) and smoothness (≥ 800s Bekk): Intensive supercalendering closes surface pores, reducing required silicone coat weight from 1.5–2.0 g/m² down to 0.8–1.2 g/m².

• Match GSM to label format: Choose 39–50gsm for high-footage pharma and barcode rolls, 57–62gsm for standard prime and logistics labels, and 70–78gsm for heavy film facestocks, wide webs, and sheeted decals.

• Support both solventless and UV silicone systems: High-purity 100% virgin wood pulp substrates like XH3110 glassine release base paper anchor both thermal addition-cure and UV-cured silicones without rub-off or migration.

• Control shop-floor humidity: Keep converting halls at 45%–55% RH and keep spare reels sealed in PE moisture barriers to prevent wavy edges and static-induced matrix wraps.

How Glassine Release Liners Work in Rotary Kiss-Cutting

Intensive supercalendering transforms 100% virgin wood pulp into a non-porous, impact-resistant anvil for rotary die blades.

Unlike ordinary kraft or machine-finished paper, glassine undergoes heavy refining, then high-pressure supercalendering through alternating heated steel and polymer rolls. This mechanical compression crushes microscopic air pockets inside the cellulose sheet, achieving a density of ≥ 1.1 g/cm³ and a Bekk smoothness of ≥ 800 seconds.

On a rotary label press, this dense structure performs three critical jobs:

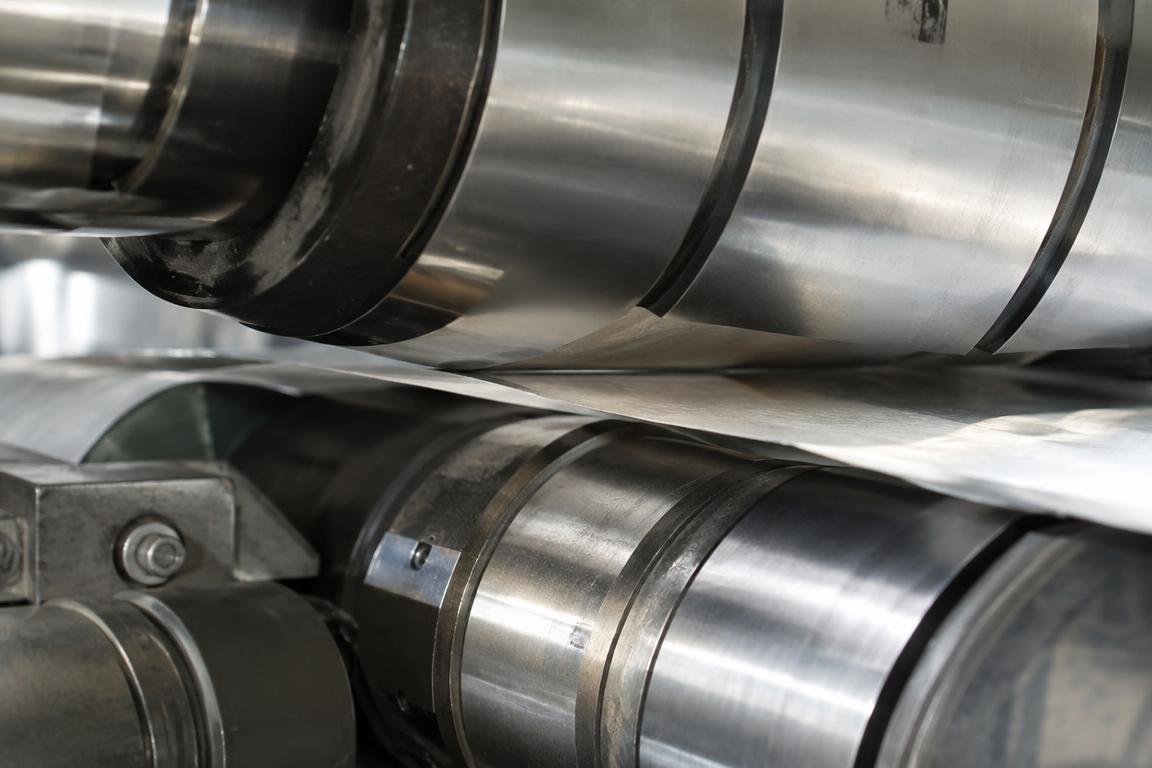

1. Precision Anvil Support: During kiss-cutting, hardened steel die blades slice through the face stock and adhesive layer, stopping at the exact micron of the silicone coating. A dense glassine backing resists blade crushing and prevents fiber fractures under high rewind tension.

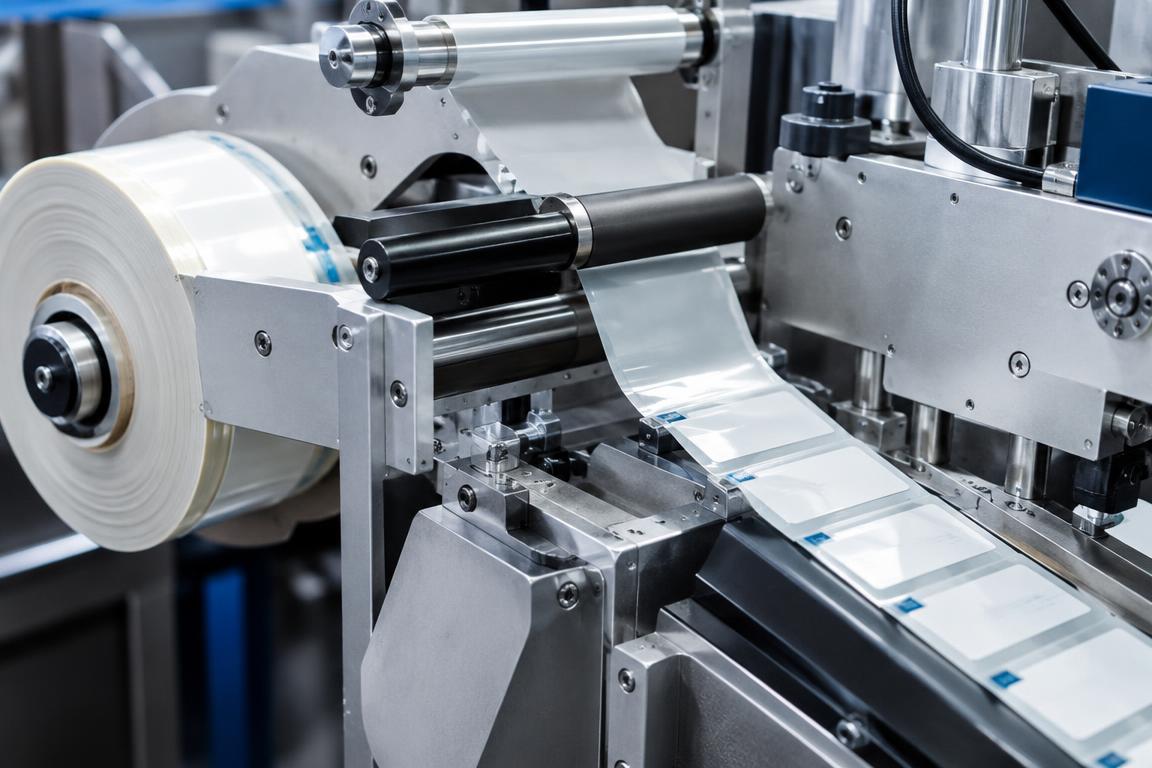

2. Optical Sensor Transparency: Automated label applicators use photoelectric sensors to detect the gap between labels. Supercalendered glassine provides uniform translucency so optical eyes trigger accurately at high dispensing speeds.

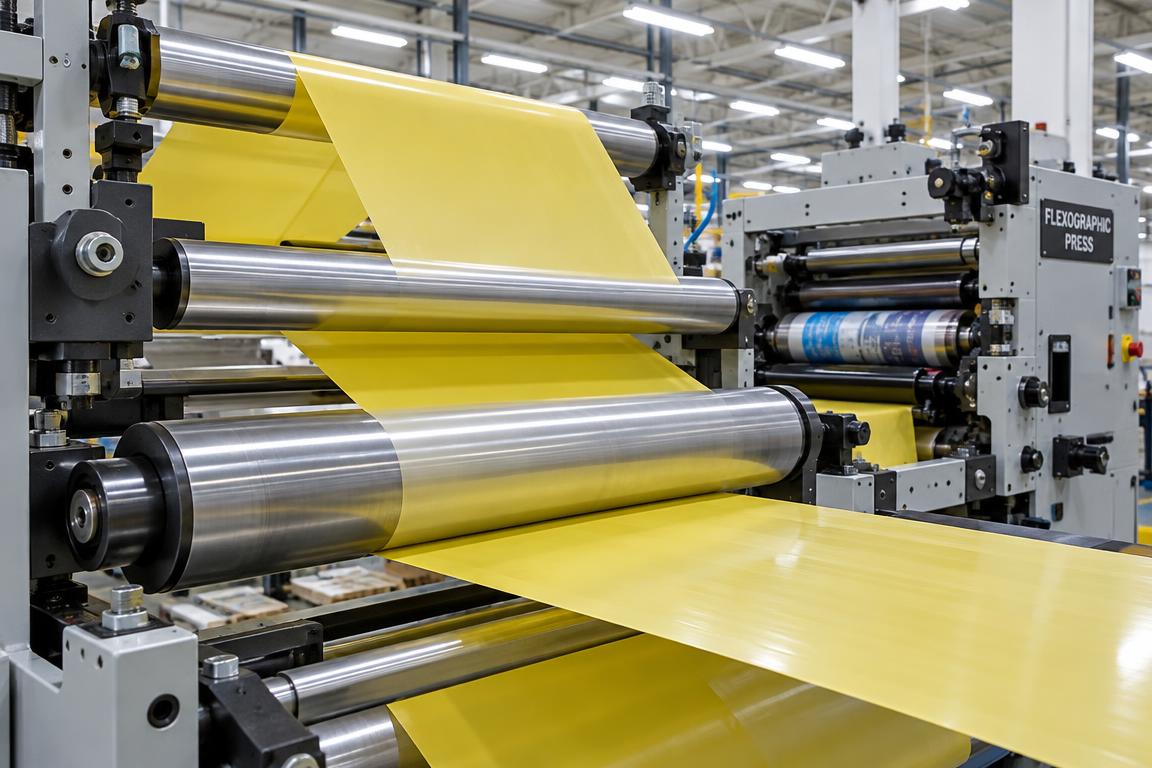

3. Dimensional Web Stability: High machine-direction (MD) tensile strength prevents web stretching and keeps multi-color print-to-cut registration locked in across long runs.

Shop-Floor Tip: Caliper consistency across both the machine direction (MD) and cross direction (CD) determines whether rotary dies kiss-cut cleanly. Even a ±3 micron deviation across the web can cause die penetration and sudden matrix snapping.

Caliper Uniformity, Tensile Strength & Silicone Hold-Out

Upgrading to a closed-surface, supercalendered base paper lowers silicone chemical costs and eliminates web breaks.

If you apply liquid silicone to a porous, low-density base paper, the expensive polymer soaks deep into the wood fibers (silicone strike-through). This wastes coating weight and leaves dry, uncoated pinholes that grab the label adhesive and tear the waste skeleton during stripping.

By contrast, Heming Paper's XH3110 Glassine Release Base Paper features a tight, closed surface that keeps silicone strictly on the top layer.

• Machine-Direction (MD) Tensile Resilience: Prevents web snapping during rapid press acceleration, deceleration, and high-tension turret rewinding.

• Cross-Direction (CD) Dimensional Stability: Stops "web necking" (narrowing under tension) so multi-lane labels stay aligned through rotary slitting stations.

• High Internal Bond Strength: Prevents the paper layers from delaminating when aggressive hot-melt or acrylic adhesives are peeled away at sharp stripping angles.

• Elastic Recovery: Minimizes permanent elongation across multiple tension zones.

Silicone Coating Chemistry & Adhesive Compatibility

Matching your silicone curing method to your adhesive rheology prevents silicone rub-off, adhesive deadening, and premature label fly-off.

Label converters run three primary pressure-sensitive adhesive families: hot-melt rubber, solvent-based rubber/acrylic, and water-based acrylic emulsions. Each interacts differently with the silicone release layer. Aggressive hot-melt adhesives require lower, tighter release forces, while emulsion acrylics need balanced intermediate release so labels do not pre-dispense around tight idler rollers.

High-grade glassine paper rolls solutions are engineered to support both major industrial silicone curing technologies:

Selecting the Right Basis Weight Across the 39–78gsm Spectrum

Choosing the right GSM balances roll footage and freight economy against anvil stiffness and tear resistance.

At Heming Paper, we manufacture supercalendered glassine across the 39–78gsm range (with standard production grades at 39g, 40g, 50g, 57g, 60g, and 78g). Here is how to match the basis weight to your converting line:

1. Lightweight Grades (39–50 GSM): Maximum Roll Footage & Narrow Webs

Lightweight 39gsm, 40gsm, and 50gsm liners yield up to 25% more linear meters per roll for a given outer diameter. This cuts roll-changeover downtime on high-speed narrow-web presses and reduces ocean freight cost per thousand labels.

• Best For: Pharmaceutical vial labels, small retail price tags, barcode labels, and food-grade interleaving.

• Press Requirement: Closed-loop servo tension control and sharp rotary tooling.

2. Medium Grades (57–62 GSM): The Global Prime Label Standard

The 57gsm to 60gsm range is the workhorse of the self-adhesive label industry. It offers the ideal balance of caliper cushion for kiss-cutting, tensile strength for rapid matrix stripping, and optical clarity for automatic dispensing.

• Best For: E-commerce shipping labels, beverage and cosmetics prime labels, multi-lane thermal transfer labels, and industrial masking tapes.

3. Heavyweight Grades (70–78 GSM): Maximum Anvil Rigidity & Wide Webs

When converting thick synthetic film facestocks (PP, PE, PET), wide-format industrial decals, or flat-sheeted products, lighter papers can curl or puncture under heavy die pressure. Stepping up to 78 GSM provides a rigid, lay-flat foundation.

• Best For: Automotive and drum chemical decals, graphic vinyl plotter films, double-sided industrial mounting tapes, and VIP sheet-fed labels.

Matrix Stripping Precision & Workshop Climate Control

Most mid-run matrix breaks happen when workshop humidity swings or static electricity pulls the waste skeleton back onto the web.

During matrix stripping, the waste ladder is peeled away from the glassine liner at a steep 45° to 90° angle. If release force is too high, the narrow waste bridges snap. If release force is too low, small labels lift off with the waste web.

Because glassine is made of pure cellulose fibers, it exchanges moisture with factory air if left unwrapped:

• Low Humidity (< 40% RH): The paper loses moisture, becomes brittle, and generates high electrostatic charges on idler rollers. Static pulls the stripped waste matrix back toward the liner, causing web wraps.

• High Humidity (> 65% RH): Exposed roll edges absorb moisture and expand, creating wavy "slack edges" that wander under the rotary die station.

Shop-Floor Best Practice: Maintain your converting room at 20°C–25°C (68°F–77°F) and 45%–55% relative humidity. Install active anti-static ionization bars right above the matrix stripping roller, and keep spare glassine reels sealed in their factory moisture-barrier PE wrap until loading.

Pre-Converting Roll Inspection & Troubleshooting Guide

Inspecting roll geometry and splice construction before mounting saves hours of press downtime.

When receiving master or slit glassine paper rolls, verify that slit edges are clean, smooth, and free of slitter dust. Loose fiber dust can migrate onto the silicone surface, contaminate adhesive edges, and cause label edge-lift on finished packages.

Use this quick troubleshooting table to resolve common press defects:

6-Step Incoming Quality Checklist for Converters

1. Verify Roll & Core Dimensions: Confirm custom roll width (300mm to 3,200mm), max outer diameter (OD), and core size (3-inch or 6-inch) against your unwind stand.

2. Measure Cross-Web Caliper: Spot-check thickness uniformity across the left, center, and right lanes using a digital dead-weight micrometer.

3. Test Release & Hold-Out: Check low-speed and high-speed peel release values, along with silicone hold-out (Bekk smoothness ≥ 800s).

4. Inspect Splice Quality: Ensure all roll joints are high-shear, heat-resistant butt splices, clearly marked with colored flag tape.

5. Check End-Face Flatness: Reject rolls with stepped edges, dished ends, or dust accumulation from dull slitting blades.

6. Confirm Moisture Packaging: Verify intact PE film, kraft wrapper, desiccant packs, and reinforced corner protectors upon container arrival.

Conclusion: Source High-Density Glassine Directly from the Mill

Consistent high-speed die-cutting starts with a uniform, supercalendered base sheet. Backed by over 1,000,000+ metric tons of annual specialty paper capacity in Quzhou, Zhejiang, Heming Paper manufactures XH3110 Glassine Release Base Paper (39–78gsm) on dedicated supercalendering lines—delivering ≥ 1.1 g/cm³ density and ≥ 800s Bekk smoothness with zero trading markups.

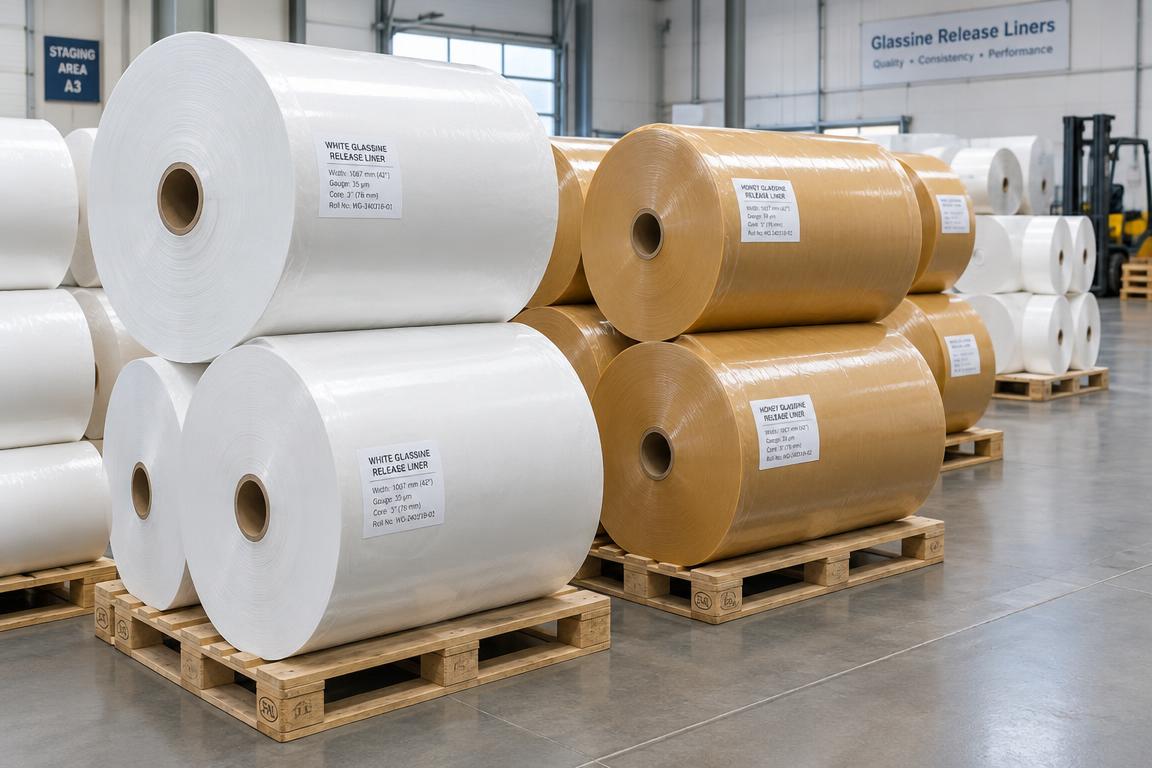

We supply both ultra-wide jumbo reels (up to 3,200mm; standard XH3110 widths 1,025 / 1,095 / 1,560 / 2,036mm) and precision-slit rolls down to 300mm, complete with FSC® Chain-of-Custody, ISO 9001, and FDA food-contact certifications. First-time buyers can start with a flexible 1 Metric Ton trial MOQ or consolidate glassine rolls with our sublimation and greaseproof papers in a single mixed container.

Ready to reduce your silicone consumption and eliminate web breaks? Contact our technical export team at ferrill@hemingpaper.com or WhatsApp +86 173-5701-3638 to request free A4 sample sheets, on-machine testing rolls, and a direct factory FOB/CIF quote within 12 business hours.
